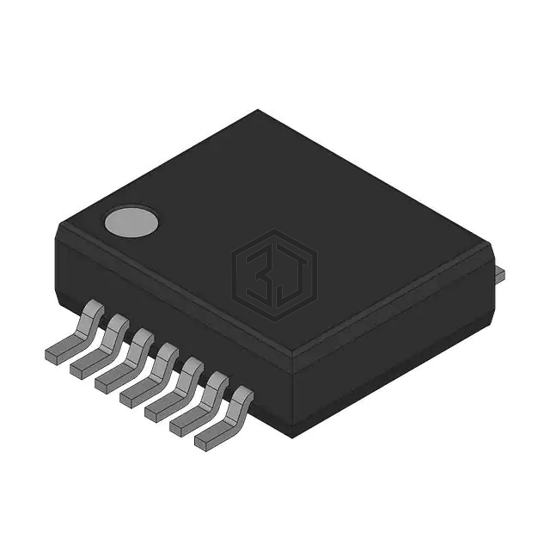

IC GATE NOR 4CH 2-INP 14SSOP
SN74HC02DBLE is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NOR 4CH 2-INP 14SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 6V, package / case 14-SSOP (0.209", 5.30mm Width).
In Stock: 7,189
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NOR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Logic Level - Low | 0.5V ~ 1.8V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 15ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SSOP |
| Package / Case | 14-SSOP (0.209", 5.30mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74HC02DB,118 | Nexperia USA Inc. | IC GATE NOR 4CH 2-INP 14SSOP | 100% | View |
| SN74HC02NSRG4 | Texas Instruments | IC GATE NOR 4CH 2-INP 14SOP | 100% | View |
| 74HC02D/S400118 | NXP USA Inc. | IC GATE NOR 4CH 2-INP 14SO | 100% | View |
| MC74HC4002FL1 | onsemi | IC GATE NOR 2CH 4-INP SOEIAJ-14 | 84% | View |
| MC74HC4002F | onsemi | IC GATE NOR 2CH 4-INP SOEIAJ-14 | 84% | View |
| SN74HCT02NS | Texas Instruments | IC GATE NOR 2CH 4-INP 14SOP | 82% | View |
Submit your RFQ for SN74HC02DBLE and get a quote within 24 hours.
