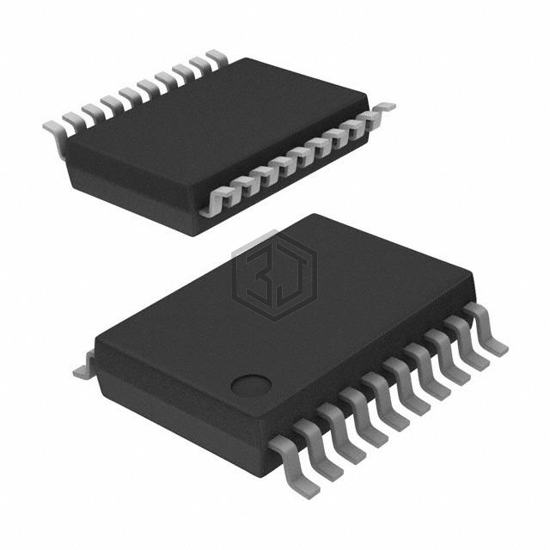

IC FF D-TYPE SNGL 8BIT 20SSOP
SN74BCT574DBRG4 is a Logic - Flip Flops manufactured by Texas Instruments. IC FF D-TYPE SNGL 8BIT 20SSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 20-SSOP (0.209", 5.30mm Width).
In Stock: 2,855
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 77 MHz |
| Max Propagation Delay @ V, Max CL | 8.6ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 15mA, 64mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 8 mA |
| Input Capacitance | 5.5 pF |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SSOP |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
SN74BCT574DBRG4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74BCT574DW | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SOIC | 100% | View |
| SN74BCT574DWR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SOIC | 100% | View |
| SN74BCT574DBRE4 | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SSOP | 100% | View |
| SN74BCT574NSRG4 | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SO | 100% | View |
| 74HC374D,653 | Nexperia USA Inc. | IC FF D-TYPE SNGL 8BIT 20SO | 59% | View |
| 74HC374DB,112-NEX | Nexperia USA Inc. | IC FF D-TYPE SNGL 8BIT 20SSOP | 59% | View |
Submit your RFQ for SN74BCT574DBRG4 and get a quote within 24 hours.
