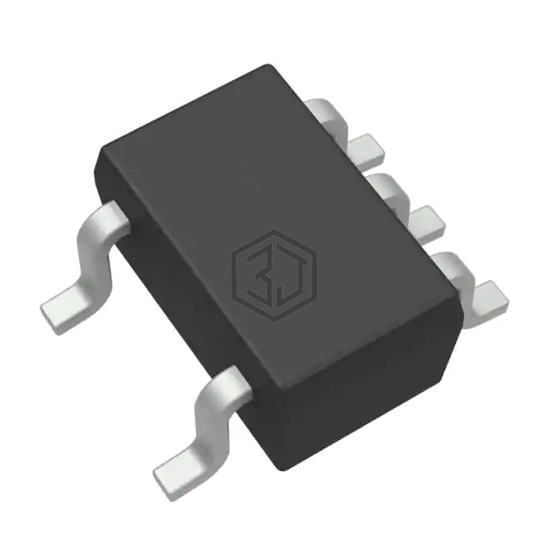

IC GATE XOR SCHMITT 1CH 2IN SC70
SN74AUP1T86DCKR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE XOR SCHMITT 1CH 2IN SC70. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2.3V ~ 3.6V, package / case 5-TSSOP, SC-70-5, SOT-353.
In Stock: 2,542
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2.3V ~ 3.6V |
| Current - Quiescent (Max) | 500 nA |
| Current - Output High, Low | 4mA, 4mA |
| Logic Level - Low | 0.35V ~ 0.5V |
| Logic Level - High | 1.1V ~ 1.19V |
| Max Propagation Delay @ V, Max CL | 4.4ns @ 3.3V, 30pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-5 |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74AUP1G86GX,125 | NXP USA Inc. | IC GATE XOR 1CH 2-INP 5X2SON | 79% | View |
| 74AUP1G86GW,125 | Nexperia USA Inc. | IC GATE XOR 1CH 2-INP 5TSSOP | 79% | View |
| 74AUP2G86GF,115 | NXP USA Inc. | IC GATE XOR 2CH 2-INP 8XSON | 75% | View |
| 74AUP2G86GD,125 | Nexperia USA Inc. | IC GATE XOR 2CH 2-INP 8XSON | 75% | View |
| MC74LVX86DTR2G | onsemi | IC GATE XOR 4CH 2-INP 14TSSOP | 61% | View |
| 74LVX86MX | onsemi | IC GATE XOR 4CH 2-INP 14SOIC | 61% | View |
Submit your RFQ for SN74AUP1T86DCKR and get a quote within 24 hours.
