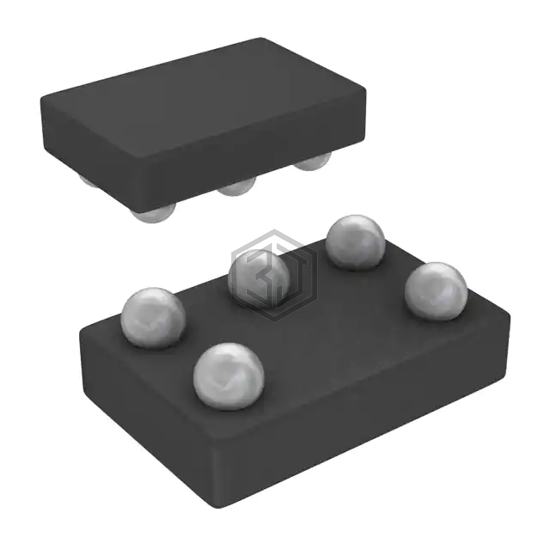

IC INVERT SCHMITT 1CH 1IN 5DSBGA
SN74AUC1G14YEPR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC INVERT SCHMITT 1CH 1IN 5DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 0.8V ~ 2.7V, package / case 5-XFBGA, DSBGA.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 0.8V ~ 2.7V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 9mA, 9mA |
| Logic Level - Low | 0.22V ~ 0.58V |
| Logic Level - High | 0.5V ~ 1.56V |
| Max Propagation Delay @ V, Max CL | 2.5ns @ 2.5V, 30pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-DSBGA (1.4x0.9) |
| Package / Case | 5-XFBGA, DSBGA |
SN74AUC1G14YEPR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74AUC1GU04YZPR | Texas Instruments | IC INVERTER 1CH 1-INP 5DSBGA | 97% | View |
| SN74AUC1GU04DBVR | Texas Instruments | IC INVERTER 1CH 1-INP SOT23-5 | 97% | View |
| SN74AUC1G04DBVR | Texas Instruments | IC INVERTER 1CH 1-INP SOT23-5 | 87% | View |
| SN74AUC1G04DCKR | Texas Instruments | IC INVERTER 1CH 1-INP SC70-5 | 87% | View |
| SN74AUC2GU04DBVR | Texas Instruments | IC INVERTER 2CH 2-INP SOT23-6 | 85% | View |
| SN74AUC04RGYR | Texas Instruments | IC INVERTER 6CH 1-INP 14VQFN | 77% | View |
Submit your RFQ for SN74AUC1G14YEPR and get a quote within 24 hours.
