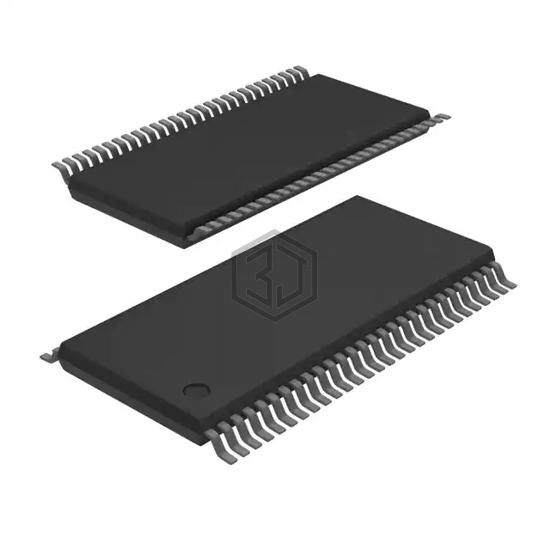

IC FF D-TYPE SNGL 10BIT 56TSSOP
SN74ALVCH162820GR is a Logic - Flip Flops manufactured by Texas Instruments. IC FF D-TYPE SNGL 10BIT 56TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 1.65V ~ 3.6V, package / case 56-TFSOP (0.240", 6.10mm Width).
In Stock: 6,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 10 |
| Clock Frequency | 150 MHz |
| Max Propagation Delay @ V, Max CL | 5.4ns @ 3.3V, 30pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 12mA, 12mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Current - Quiescent (Iq) | 40 µA |
| Input Capacitance | 3.5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 56-TSSOP |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) |
SN74ALVCH162820GR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LVT162374DL,118 | Nexperia USA Inc. | IC FF D-TYPE DUAL 8BIT 48SSOP | 85% | View |
| SN74ALVCH16374DL | Texas Instruments | IC FF D-TYPE DUAL 8BIT 48SSOP | 83% | View |
| 74ALVT16821DGGY | Nexperia USA Inc. | IC FF D-TYPE DUAL 10BIT 56TSSOP | 79% | View |
| SN74LVC574ANSR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SO | 79% | View |
| 74LVC374APW/AUJ | NXP USA Inc. | IC FF D-TYPE SNGL 8BIT 20TSSOP | 79% | View |
| SN74LVC821ADW | Texas Instruments | IC FF D-TYPE SNGL 10BIT 20SOIC | 78% | View |
Submit your RFQ for SN74ALVCH162820GR and get a quote within 24 hours.
