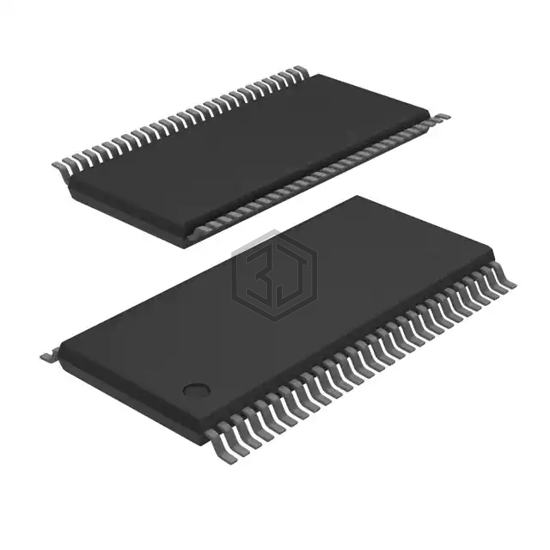

IC FF D-TYPE SNGL 20BIT 56SSOP
SN74ALVCH162721DL is a Logic - Flip Flops manufactured by Texas Instruments. IC FF D-TYPE SNGL 20BIT 56SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 1.65V ~ 3.6V, package / case 56-BSSOP (0.295", 7.50mm Width).
In Stock: 10,051
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 20 |
| Clock Frequency | 150 MHz |
| Max Propagation Delay @ V, Max CL | 5.3ns @ 3.3V, 30pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 12mA, 12mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Current - Quiescent (Iq) | 40 µA |
| Input Capacitance | 3.5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 56-SSOP |
| Package / Case | 56-BSSOP (0.295", 7.50mm Width) |
SN74ALVCH162721DL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74ALVCH162374DL | Texas Instruments | IC FF D-TYPE DUAL 8BIT 48SSOP | 89% | View |
| SN74ALVCH16374DLR | Texas Instruments | IC FF D-TYPE DUAL 8BIT 48SSOP | 79% | View |
| 74LCX16821MTDX | Fairchild Semiconductor | IC FF D-TYPE DUAL 10BIT 56TSSOP | 74% | View |
| 74LVT574WM | Fairchild Semiconductor | IC FF D-TYPE SNGL 8BIT 20SOIC | 70% | View |
| SN74LVTH374IPWREP | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20TSSOP | 69% | View |
| MC74LCX574DTR2G | onsemi | IC FF D-TYPE SNGL 8BIT 20TSSOP | 68% | View |
Submit your RFQ for SN74ALVCH162721DL and get a quote within 24 hours.
