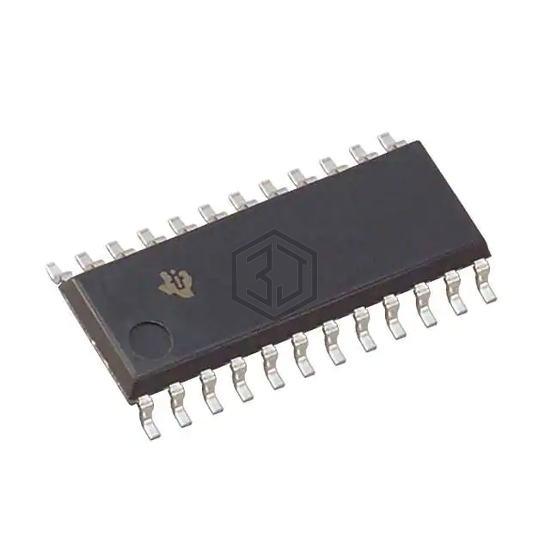

IC FF D-TYPE DUAL 4BIT 24SO
SN74ALS874BNSR is a Logic - Flip Flops manufactured by Texas Instruments. IC FF D-TYPE DUAL 4BIT 24SO. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 24-SOIC (0.209", 5.30mm Width).
In Stock: 1,300
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Clock Frequency | 30 MHz |
| Max Propagation Delay @ V, Max CL | 14ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 2.6mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 21 mA |
| Input Capacitance | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-SO |
| Package / Case | 24-SOIC (0.209", 5.30mm Width) |
SN74ALS874BNSR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DM74ALS874BWM | Fairchild Semiconductor | IC FF D-TYPE DUAL 4BIT 24SOP | 100% | View |
| SN74ALS874BDWR | Texas Instruments | IC FF D-TYPE DUAL 4BIT 20SOIC | 100% | View |
| SN74ALS874BDW | Texas Instruments | IC FF D-TYPE DUAL 4BIT 20SOIC | 100% | View |
| SN74ALS874BNSRG4 | Texas Instruments | IC FF D-TYPE DUAL 4BIT 24SO | 100% | View |
| SN74ALS874BNSRE4 | Texas Instruments | IC FF D-TYPE DUAL 4BIT 24SO | 100% | View |
| SN74ALS575ADW | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SOIC | 91% | View |
Submit your RFQ for SN74ALS874BNSR and get a quote within 24 hours.
