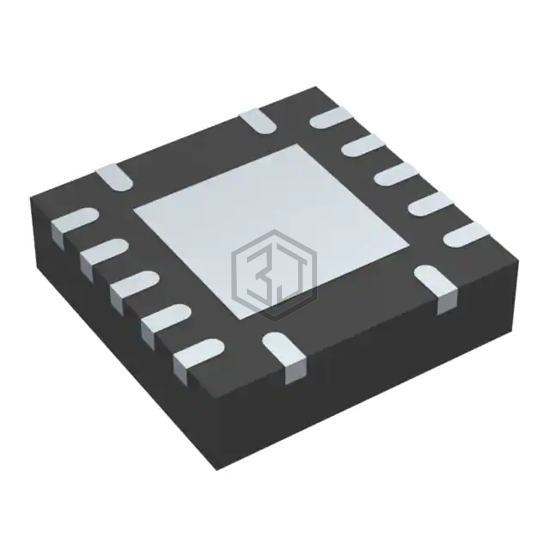

IC INV SCHMITT 6CH 1-IN 14VQFN
SN74AHCT14RGYRG4 is a Logic - Gates and Inverters manufactured by Texas Instruments. IC INV SCHMITT 6CH 1-IN 14VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 14-VFQFN Exposed Pad.
In Stock: 3,506
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.5V ~ 0.6V |
| Logic Level - High | 1.9V ~ 2.1V |
| Max Propagation Delay @ V, Max CL | 8ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-VQFN (3.5x3.5) |
| Package / Case | 14-VFQFN Exposed Pad |
SN74AHCT14RGYRG4 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74VHC04MTCX | onsemi | IC INVERTER 6CH 1-INP 14TSSOP | 92% | View |
| TC7WH04FU(TE12L) | Toshiba Semiconductor and Storage | IC INVERTER 8-SSOP | 88% | View |
| SN74AHC14PWE4 | Texas Instruments | IC INVERTER 6CH 1-INP 14TSSOP | 86% | View |
| 74AHCT1G04GV,125 | Nexperia USA Inc. | IC INVERTER 1CH 1-INP SC74A | 82% | View |
| SN74AHCT1G04DCKR | Texas Instruments | IC INVERTER 1CH 1-INP SC70-5 | 81% | View |
| MC74VHC1GT14DTT1 | onsemi | IC INVERT SGL SCHMTT TTL 5TSOP | 76% | View |
Submit your RFQ for SN74AHCT14RGYRG4 and get a quote within 24 hours.
