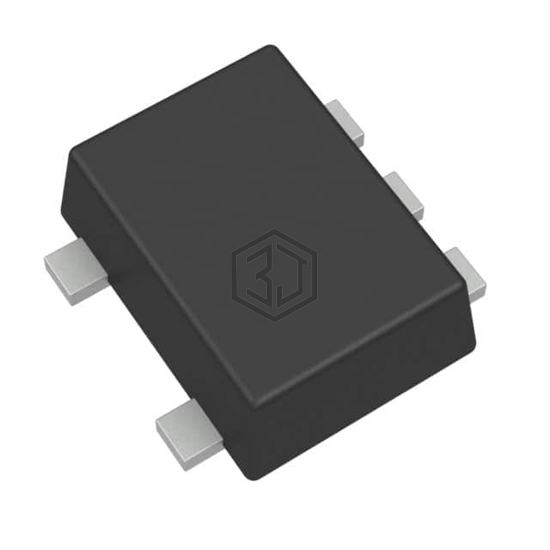

IC INVERT SCHMITT 1CH 1-INP SOT5
SN74AHC1G14DRLR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC INVERT SCHMITT 1CH 1-INP SOT5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 5.5V, package / case SOT-553.
In Stock: 5,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.9V ~ 1.65V |
| Logic Level - High | 2.2V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 10.6ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-5 |
| Package / Case | SOT-553 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74AHC1G14QSE-7 | Diodes Incorporated | IC INVERT SCHMITT 1CH 1IN SOT353 | 96% | View |
| 74AHC3G14DP-Q100H | Nexperia USA Inc. | IC INVERT SCHMITT 3CH 3IN 8TSSOP | 86% | View |
| SN74AHC14DGVR | Texas Instruments | IC INVERTER 6CH 1-INP 14TVSOP | 86% | View |
| 74VHC14YTTR | STMicroelectronics | IC INVERTER 6CH 1-INP 14TSSOP | 86% | View |
| SN74AHCT04NSR | Texas Instruments | IC INVERTER 6CH 1-INP 14SOP | 74% | View |
| SN74AHCT04DR | Texas Instruments | IC INVERTER 6CH 1-INP 14SOIC | 74% | View |
Submit your RFQ for SN74AHC1G14DRLR and get a quote within 24 hours.
