IC INVERT SCHMITT 1CH 1IN SC70

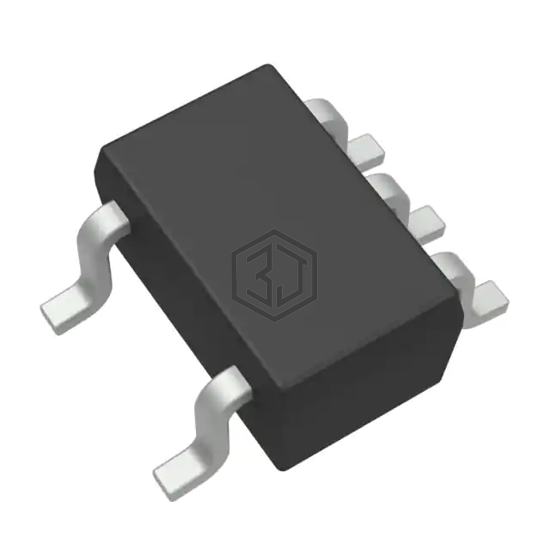

SN74AHC1G14DCKJ is a Logic - Gates and Inverters manufactured by Texas Instruments. IC INVERT SCHMITT 1CH 1IN SC70. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 5.5V, package / case 5-TSSOP, SC-70-5, SOT-353.
In Stock: 4,810
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.9V ~ 1.65V |
| Logic Level - High | 2.2V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 10.6ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-5 |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
SN74AHC1G14DCKJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NLVVHC1GT14DFT2G | onsemi | IC INVERT SCHMITT 1CH 1-IN SC88A | 90% | View |
| 74AHCT1G04DCKRE4 | Texas Instruments | IC INVERTER 1CH 1-INP SC70-5 | 89% | View |
| CAHCT1G04WDTXRQ1 | Texas Instruments | AUTOMOTIVE SINGLE 4.5-V TO 5.5-V | 88% | View |
| 74AHCT1G14DBVRE4 | Texas Instruments | IC INVERTER 1CH 1-INP SOT23-5 | 86% | View |
| SN74AHC04QDRQ1 | Texas Instruments | IC INVERTER 6CH 1-INP 14SOIC | 74% | View |
| 74AHCT3G14DC-Q100H | Nexperia USA Inc. | IC INVERT SCHMITT 3CH 3IN 8VSSOP | 74% | View |
Submit your RFQ for SN74AHC1G14DCKJ and get a quote within 24 hours.
