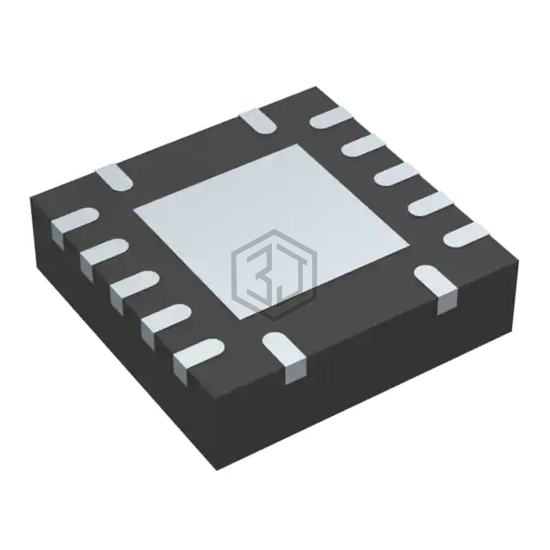

IC GATE NAND 4CH 2-INP 14VQFN
SN74AHC132RGYR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND 4CH 2-INP 14VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 5.5V, package / case 14-VFQFN Exposed Pad.
In Stock: 17,820
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.9V ~ 1.65V |
| Logic Level - High | 2.2V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 9.7ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-VQFN (3.5x3.5) |
| Package / Case | 14-VFQFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74AHC132D-Q100J | Nexperia USA Inc. | IC GATE NAND 4CH 2-INP 14SO | 100% | View |
| SN74AHC132D | Texas Instruments | IC GATE NAND 4CH 2-INP 14SOIC | 100% | View |
| 74VHC132MTCX | onsemi | IC GATE NAND 4CH 2-INP 14TSSOP | 100% | View |
| MC74VHC132DTR2G | onsemi | IC GATE NAND 4CH 2-INP 14TSSOP | 100% | View |
| SN74AHC132PWR | Texas Instruments | IC GATE NAND 4CH 2-INP 14TSSOP | 100% | View |
| SN74AHCT00MPWREP | Texas Instruments | IC GATE NAND 4CH 2-INP 14TSSOP | 90% | View |
Submit your RFQ for SN74AHC132RGYR and get a quote within 24 hours.
