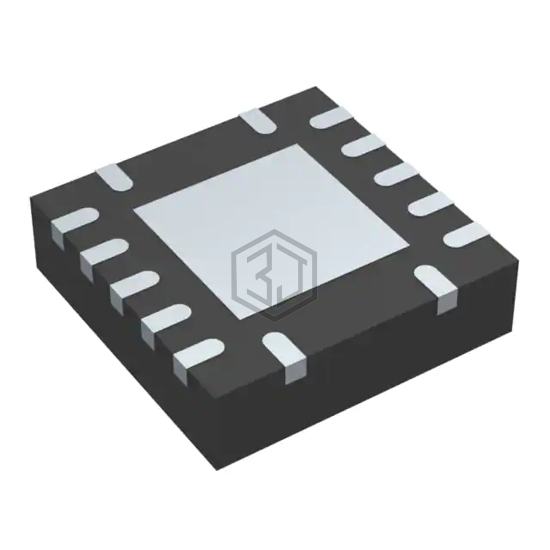

IC GATE NOR 4CH 2-INP 14VQFN
SN74AHC02RGYR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NOR 4CH 2-INP 14VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 5.5V, package / case 14-VFQFN Exposed Pad.
In Stock: 142
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NOR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.5V ~ 1.65V |
| Logic Level - High | 1.5V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 8.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-VQFN (3.5x3.5) |
| Package / Case | 14-VFQFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74AHC02NSR | Texas Instruments | IC GATE NOR 4CH 2-INP 14SOP | 100% | View |
| SN74AHC02PWRE4 | Texas Instruments | IC GATE NOR 4CH 2-INP 14TSSOP | 100% | View |
| 74VHC27MTR | STMicroelectronics | IC GATE NOR 3CH 3-INP 14SO | 95% | View |
| MC74VHC1G02DFT2G | onsemi | IC GATE NOR 1CH 2-INP SC88A | 85% | View |
| XC7SH02GW,125 | Nexperia USA Inc. | IC GATE NOR 1CH 2-INP 5TSSOP | 85% | View |
| 74AHCT1G02QW5-7 | Diodes Incorporated | IC GATE NOR 1CH 2-INP SOT25 | 75% | View |
Submit your RFQ for SN74AHC02RGYR and get a quote within 24 hours.
