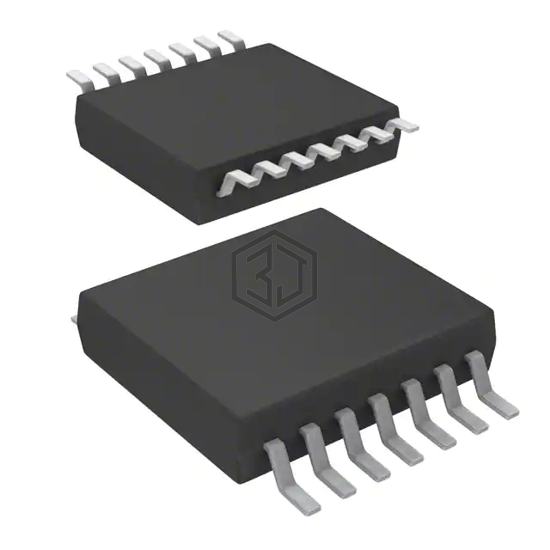

IC GATE NAND 4CH 2-INP 14TVSOP
SN74AHC00DGVRE4 is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND 4CH 2-INP 14TVSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 5.5V, package / case 14-TFSOP (0.173", 4.40mm Width).
In Stock: 8,819
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.5V ~ 1.65V |
| Logic Level - High | 1.5V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TVSOP |
| Package / Case | 14-TFSOP (0.173", 4.40mm Width) |
SN74AHC00DGVRE4 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74AHC00MDREP | Texas Instruments | IC GATE NAND 4CH 2-INP 14SOIC | 100% | View |
| 74AHC00D-Q100J | Nexperia USA Inc. | IC GATE NAND 4CH 2-INP 14DHVQFN | 100% | View |
| 74VHC00TTR | STMicroelectronics | IC GATE NAND 4CH 2-INP 14TSSOP | 100% | View |
| 74VHC00MTR | STMicroelectronics | IC GATE NAND 4CH 2-INP 14SO | 100% | View |
| 74AHCT00D-Q100J | Nexperia USA Inc. | IC GATE NAND 4CH 2-INP 14SO | 89% | View |
| NL17SG00MU1TCG | onsemi | MOSFET N/P-CH | 68% | View |
Submit your RFQ for SN74AHC00DGVRE4 and get a quote within 24 hours.
