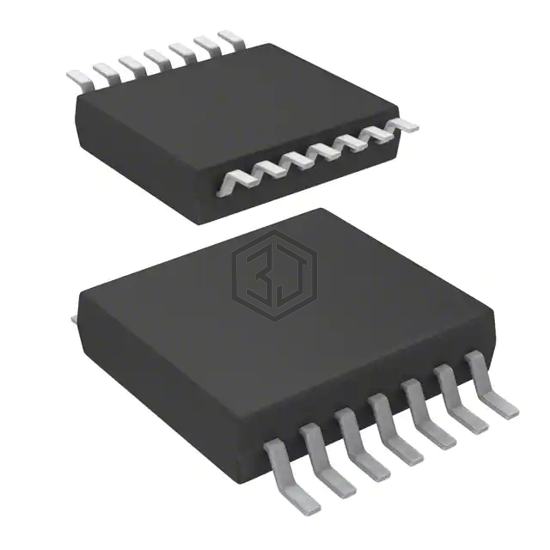

IC GATE NAND 4CH 2-INP 14TVSOP
SN74AHC00DGVR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND 4CH 2-INP 14TVSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 5.5V, package / case 14-TFSOP (0.173", 4.40mm Width).
In Stock: 8,382
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.5V ~ 1.65V |
| Logic Level - High | 1.5V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TVSOP |
| Package / Case | 14-TFSOP (0.173", 4.40mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74AHC00DR | Texas Instruments | IC GATE NAND 4CH 2-INP 14SOIC | 100% | View |
| MC74VHC132DR2G | onsemi | IC GATE NAND 4CH 2-INP 14SOIC | 90% | View |
| 74AHCT00PW-Q100J | Nexperia USA Inc. | IC GATE NAND 4CH 2-INP 14TSSOP | 89% | View |
| SN74AHCT00QPWRG4Q1 | Texas Instruments | IC GATE NAND 4CH 2-INP 14TSSOP | 89% | View |
| 74AHC1G00SE-7 | Diodes Incorporated | IC GATE NAND 1CH 2-INP SOT353 | 87% | View |
| 74AHC30BQ,115 | Nexperia USA Inc. | IC GATE NAND 1CH 8-INP 14DHVQFN | 82% | View |
Submit your RFQ for SN74AHC00DGVR and get a quote within 24 hours.
