BUS DRIVER, ACT SERIES, 8-BIT

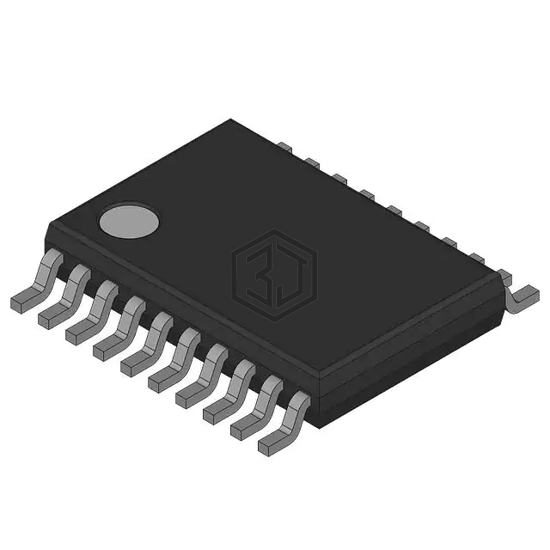

SN74ACT534PWLE is a Logic - Flip Flops manufactured by Texas Instruments. BUS DRIVER, ACT SERIES, 8-BIT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 20-TSSOP (0.173", 4.40mm Width).
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State, Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 100 MHz |
| Max Propagation Delay @ V, Max CL | 11.5ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 4 µA |
| Input Capacitance | 4.5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74ACT534PW | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20TSSOP | 100% | View |
| SN74ACT534DWR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SOIC | 100% | View |
| SN74ACT534NSR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SO | 100% | View |
| SN74ACT534DW | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SOIC | 100% | View |
| SN74ACT534PWRG4 | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20TSSOP | 100% | View |
| SN74ACT534DBLE | Texas Instruments | BUS DRIVER, ACT SERIES, 8-BIT | 100% | View |
Submit your RFQ for SN74ACT534PWLE and get a quote within 24 hours.
