BUS DRIVER, AC SERIES, 8-BIT

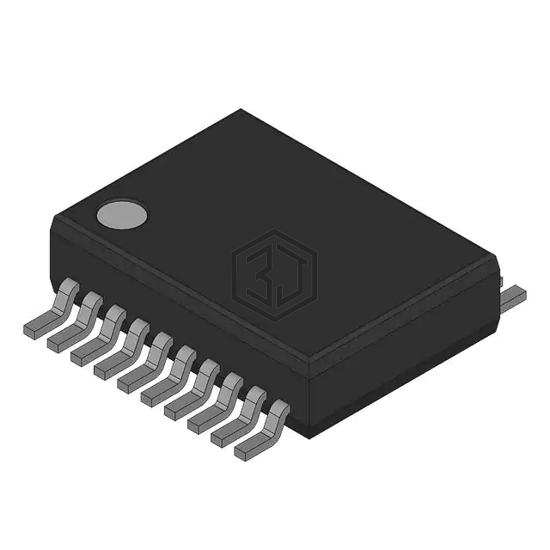

SN74AC564DBLE is a Logic - Flip Flops manufactured by Texas Instruments. BUS DRIVER, AC SERIES, 8-BIT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2V ~ 6V, package / case 20-SSOP (0.209", 5.30mm Width).
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State, Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 95 MHz |
| Max Propagation Delay @ V, Max CL | 10.5ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Iq) | 4 µA |
| Input Capacitance | 4.5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SSOP |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74AC564DW | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SOIC | 100% | View |
| SN74AC564DBR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SSOP | 100% | View |
| SN74AC564PW | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20TSSOP | 100% | View |
| SN74ACT564PWR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20TSSOP | 95% | View |
| SN74ACT564DWR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SOIC | 95% | View |
| SN74ACT564DW | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SOIC | 95% | View |
Submit your RFQ for SN74AC564DBLE and get a quote within 24 hours.
