IC FF D-TYPE SNGL 9BIT 24SO

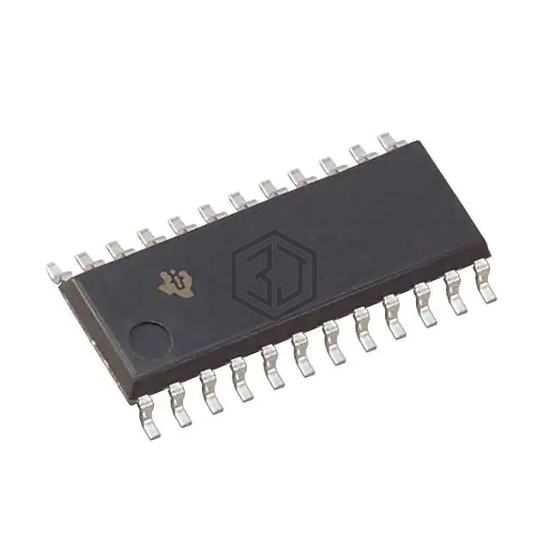

SN74ABT823NSR is a Logic - Flip Flops manufactured by Texas Instruments. IC FF D-TYPE SNGL 9BIT 24SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 24-SOIC (0.209", 5.30mm Width).
In Stock: 8,452
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 9 |
| Clock Frequency | 200 MHz |
| Max Propagation Delay @ V, Max CL | 6.1ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 32mA, 64mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 250 µA |
| Input Capacitance | 4 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-SO |
| Package / Case | 24-SOIC (0.209", 5.30mm Width) |
SN74ABT823NSR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74ABT823DB,118 | NXP USA Inc. | IC FF D-TYPE SNGL 9BIT 24SSOP | 100% | View |
| 74ABT823DB,112 | NXP USA Inc. | IC FF D-TYPE SNGL 9BIT 24SSOP | 100% | View |
| 74ABT823PW,118 | NXP USA Inc. | IC FF D-TYPE SNGL 9BIT 24TSSOP | 100% | View |
| 74ABT823PW,112 | NXP USA Inc. | IC FF D-TYPE SNGL 9BIT 24TSSOP | 100% | View |
| SN74ABT823DBRG4 | Texas Instruments | IC FF D-TYPE SNGL 9BIT 24SSOP | 100% | View |
| 74ABT823D,623 | NXP USA Inc. | IC FF D-TYPE SNGL 9BIT 24SO | 100% | View |
Submit your RFQ for SN74ABT823NSR and get a quote within 24 hours.
