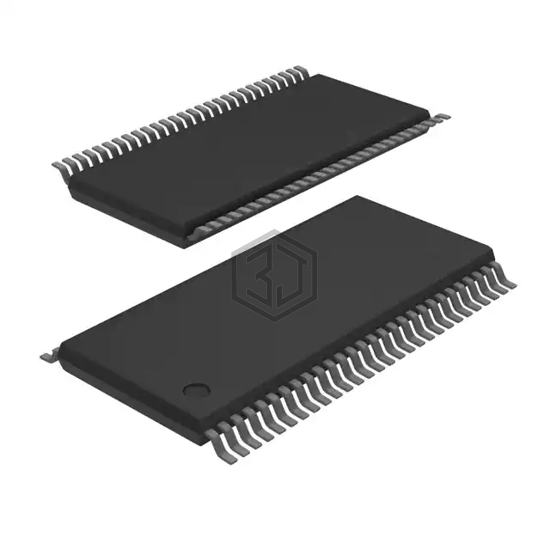

IC FF D-TYPE DUAL 9BIT 56TSSOP
SN74ABT16823DGGR is a Logic - Flip Flops manufactured by Texas Instruments. IC FF D-TYPE DUAL 9BIT 56TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 56-TFSOP (0.240", 6.10mm Width).
In Stock: 9,495
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 2 |
| Number of Bits per Element | 9 |
| Clock Frequency | 150 MHz |
| Max Propagation Delay @ V, Max CL | 5.5ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 32mA, 64mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 500 µA |
| Input Capacitance | 3.5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 56-TSSOP |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74ABT16823DLR | Texas Instruments | IC FF D-TYPE DUAL 9BIT 56SSOP | 100% | View |
| SN74ABT16823DGVR | Texas Instruments | IC FF D-TYPE DUAL 9BIT 56TVSOP | 100% | View |
| SN74ABT16823DL | Texas Instruments | IC FF D-TYPE DUAL 9BIT 56SSOP | 100% | View |
| SN74ABT162823ADL | Texas Instruments | IC FF D-TYPE DUAL 9BIT 56SSOP | 87% | View |
| SN74LVC823ADGVR | Texas Instruments | IC FF D-TYPE SNGL 9BIT 24TVSOP | 72% | View |
| SN74LVC823ADW | Texas Instruments | IC FF D-TYPE SNGL 9BIT 20SOIC | 72% | View |
Submit your RFQ for SN74ABT16823DGGR and get a quote within 24 hours.
