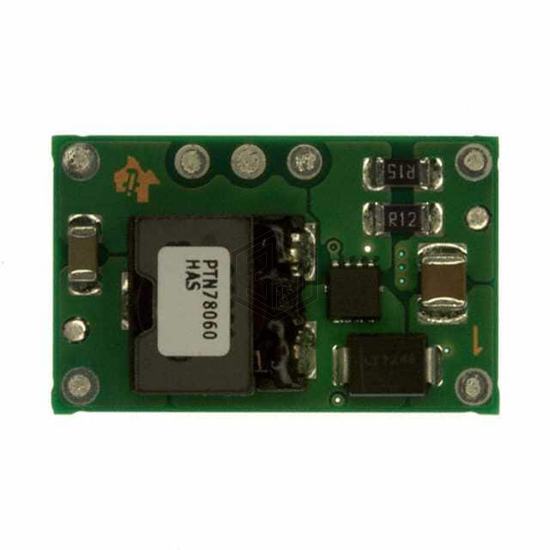

DC DC CONVERTER 11.85-22V
PTN78060HAS is a DC DC Converters manufactured by Texas Instruments. DC DC CONVERTER 11.85-22V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 7-SMD Module, current - output (max) 3A.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 15V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 11.85 ~ 22V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A |
| Power (Watts) | - |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 96% |
| Mounting Type | Surface Mount |
| Package / Case | 7-SMD Module |
| Size / Dimension | 1.00" L x 0.62" W x 0.38" H (25.4mm x 15.7mm x 9.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for PTN78060HAS and get a quote within 24 hours.
