DC DC CONVERTER 1.8-3.6V 30W

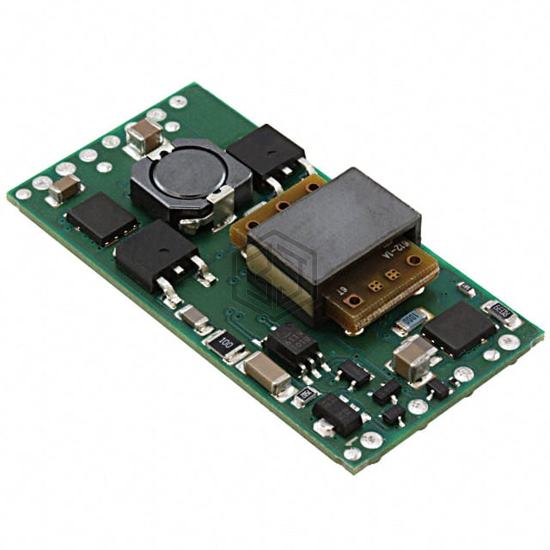

PTB78560BAS is a DC DC Converters manufactured by Texas Instruments. DC DC CONVERTER 1.8-3.6V 30W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 11-SMD Module, current - output (max) 8A.
In Stock: 349
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 60V |
| Voltage - Output 1 | 1.8 ~ 3.6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 8A |
| Power (Watts) | 30 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 80% |
| Mounting Type | Surface Mount |
| Package / Case | 11-SMD Module |
| Size / Dimension | 2.04" L x 1.04" W x 0.40" H (51.8mm x 26.5mm x 10.3mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for PTB78560BAS and get a quote within 24 hours.
