DC DC CONVERTER +/-5V 85W

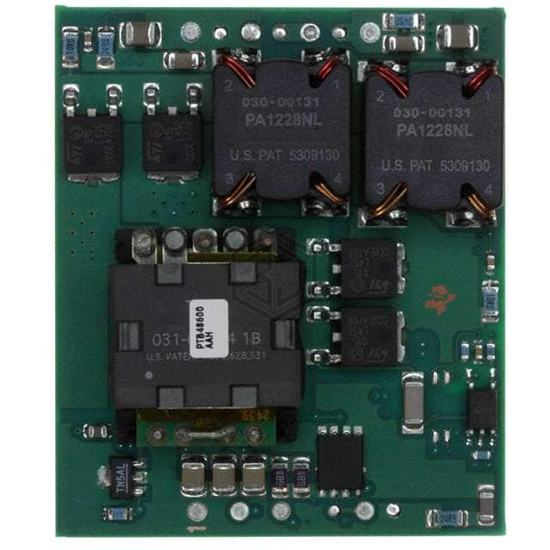

PTB48600AAH is a DC DC Converters manufactured by Texas Instruments. DC DC CONVERTER +/-5V 85W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 8-DIP Module, current - output (max) 8.5A, 8.5A.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 8.5A, 8.5A |
| Power (Watts) | 85 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 85% |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module |
| Size / Dimension | 2.22" L x 1.89" W x 0.47" H (56.4mm x 48.0mm x 12.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for PTB48600AAH and get a quote within 24 hours.
