DC DC CONVERTER 3.6-5.5V 30W

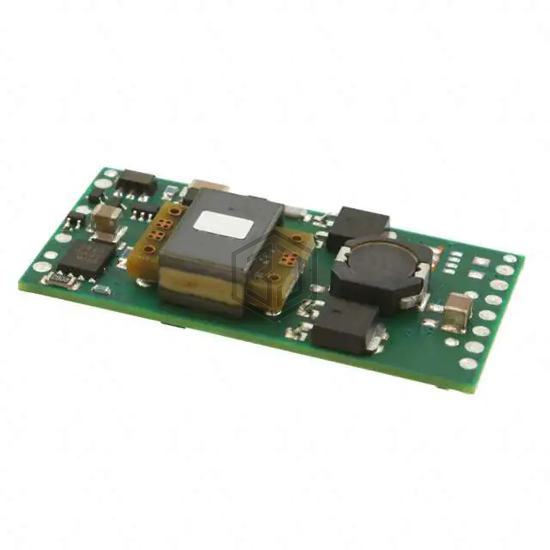

PTB48560AAZ is a DC DC Converters manufactured by Texas Instruments. DC DC CONVERTER 3.6-5.5V 30W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 11-SMD Module, current - output (max) 6A.
In Stock: 1,411
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 3.6 ~ 5.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6A |
| Power (Watts) | 30 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 84% |
| Mounting Type | Surface Mount |
| Package / Case | 11-SMD Module |
| Size / Dimension | 2.04" L x 1.04" W x 0.40" H (51.8mm x 26.5mm x 10.3mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for PTB48560AAZ and get a quote within 24 hours.
