DC DC CONVERTER 12V 10W

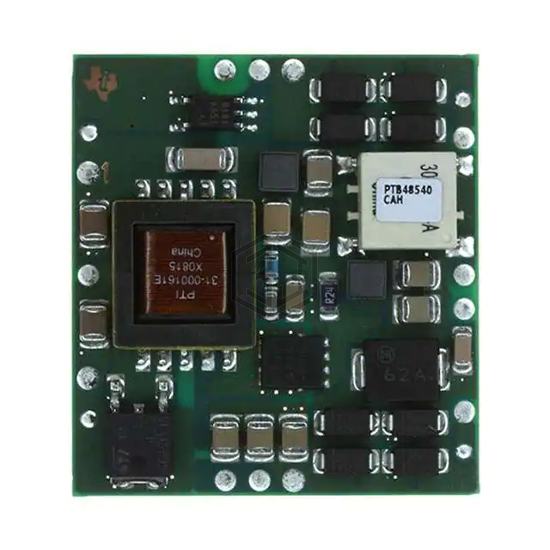

PTB48540CAD is a DC DC Converters manufactured by Texas Instruments. DC DC CONVERTER 12V 10W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 13-DIP Module, current - output (max) 850mA.
In Stock: 1,668
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Isolated PoE Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 57V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 850mA |
| Power (Watts) | 10 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 85% |
| Mounting Type | Through Hole |
| Package / Case | 13-DIP Module |
| Size / Dimension | 1.62" L x 1.50" W x 0.35" H (41.1mm x 38.1mm x 8.9mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
