DC DC CONVERTER 1.8-3.6V 90W

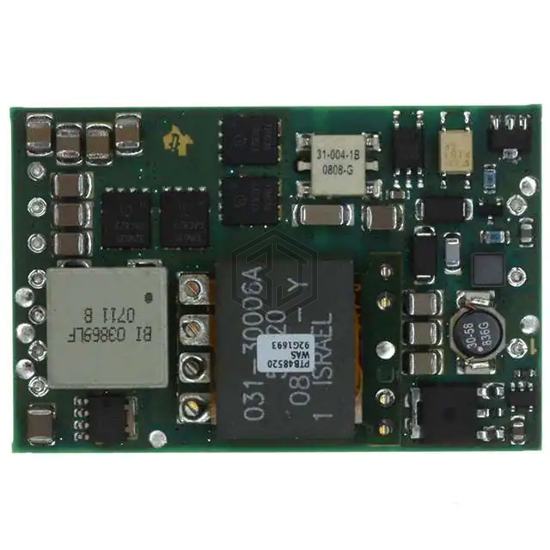

PTB48520WAS is a DC DC Converters manufactured by Texas Instruments. DC DC CONVERTER 1.8-3.6V 90W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-SMD Module, current - output (max) 25A.
In Stock: 57
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 1.8 ~ 3.6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 25A |
| Power (Watts) | 90 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 91% |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD Module |
| Size / Dimension | 2.22" L x 1.45" W x 0.50" H (56.4mm x 36.8mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
