DC DC CONVERTER 3.3V 1.2V 28W

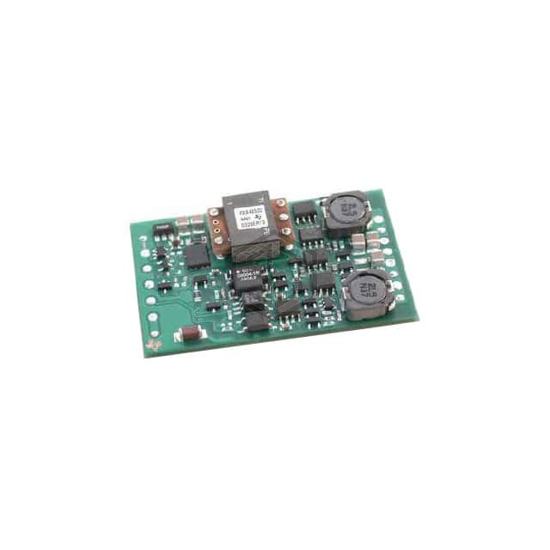

PTB48500AAH is a DC DC Converters manufactured by Texas Instruments. DC DC CONVERTER 3.3V 1.2V 28W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 10-DIP Module, current - output (max) 6A, 7A.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 1.2V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6A, 7A |
| Power (Watts) | 28 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 82% |
| Mounting Type | Through Hole |
| Package / Case | 10-DIP Module |
| Size / Dimension | 2.22" L x 1.45" W x 0.47" H (56.4mm x 36.8mm x 12.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for PTB48500AAH and get a quote within 24 hours.
