DC DC CONVERTER 3.3V 1.2V

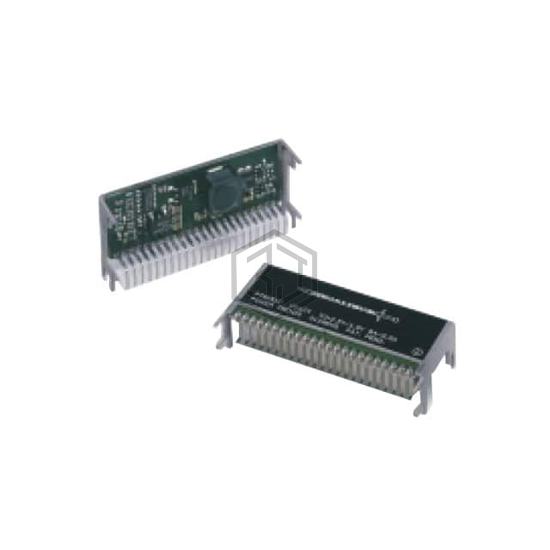

PT6984N is a DC DC Converters manufactured by Texas Instruments. DC DC CONVERTER 3.3V 1.2V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 23-SIP Module, current - output (max) 8.6A, 1.6A.
In Stock: 35
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 1.2V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 8.6A, 1.6A |
| Power (Watts) | - |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 78% |
| Mounting Type | Through Hole |
| Package / Case | 23-SIP Module |
| Size / Dimension | 2.58" L x 0.60" W x 1.02" H (65.5mm x 15.2mm x 25.9mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for PT6984N and get a quote within 24 hours.
