DC DC CONVERTER +/-12V 6W

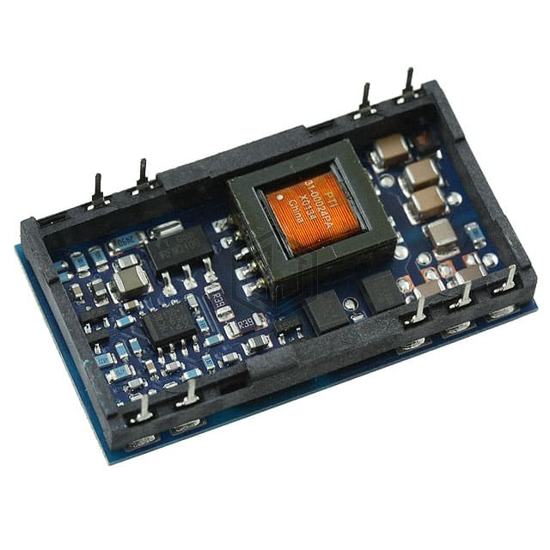

PT4313C is a DC DC Converters manufactured by Texas Instruments. DC DC CONVERTER +/-12V 6W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 18-SMD Module, 9 Leads, current - output (max) 500mA, 500mA.
In Stock: 90
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 38V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500mA, 500mA |
| Power (Watts) | 6 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 85% |
| Mounting Type | Surface Mount |
| Package / Case | 18-SMD Module, 9 Leads |
| Size / Dimension | 1.90" L x 1.21" W x 0.32" H (48.3mm x 30.7mm x 8.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
