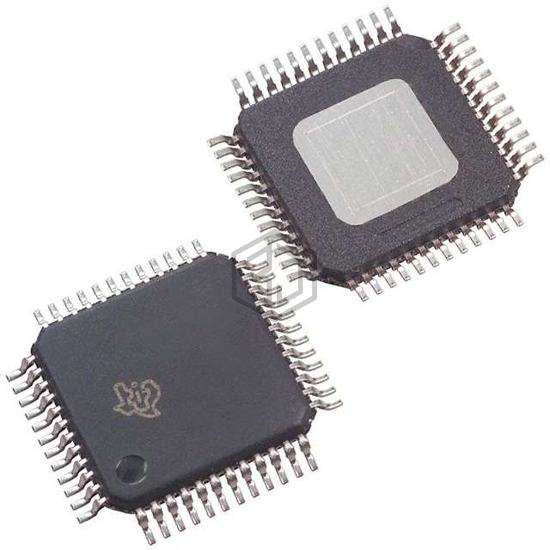

IC GATE DRVR HALF-BRIDGE 48HTQFP
PDRV8305NQPHPRQ1 is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 48HTQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.4V ~ 45V, package / case 48-PowerTQFP.
In Stock: 6,189
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | 3-Phase |
| Number of Drivers | 6 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.4V ~ 45V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 1A, 1A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 48-PowerTQFP |
| Supplier Device Package | 48-HTQFP (7x7) |
PDRV8305NQPHPRQ1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PDRV8305NEPHPRQ1 | Texas Instruments | IC GATE DRVR HALF-BRIDGE 48HTQFP | 100% | View |
| PDRV83053QPHPRQ1 | Texas Instruments | IC GATE DRVR HALF-BRIDGE 48HTQFP | 100% | View |
| TLE9180D21QKXUMA1 | Infineon Technologies | DRIVER_IC | 95% | View |
| MPQ6531GVE-AEC1-P | Monolithic Power Systems Inc. | IC GATE DRVR HALF-BRIDGE 28VFQFN | 95% | View |
| MPQ6531GV-AEC1-P | Monolithic Power Systems Inc. | IC GATE DRVR HALF-BRIDGE 28VFQFN | 95% | View |
| TLE9180D31QKXUMA1 | Infineon Technologies | IC MOTOR CONTROLLER 64-LQFP | 73% | View |
Submit your RFQ for PDRV8305NQPHPRQ1 and get a quote within 24 hours.
