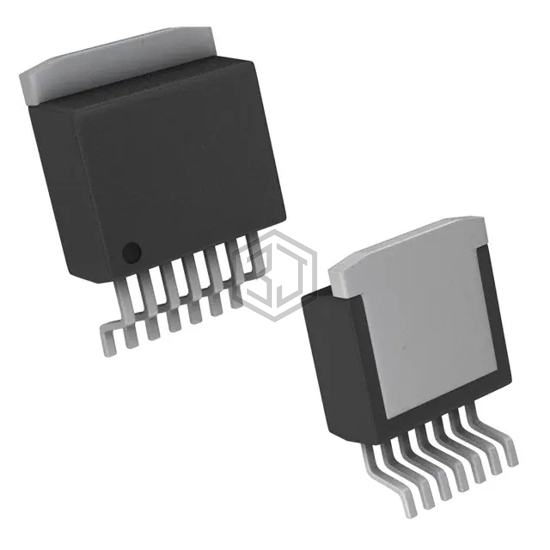

IC OPAMP GP 1 CIRC DDPAK/TO263-7
OPA552FAKTWT is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Texas Instruments. IC OPAMP GP 1 CIRC DDPAK/TO263-7. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA, current - supply 7mA.
In Stock: 1,029
| Attribute | Value |
|---|---|
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | 24V/µs |
| Gain Bandwidth Product | 12 MHz |
| -3db Bandwidth | - |
| Current - Input Bias | 20 pA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 7mA |
| Current - Output / Channel | 200 mA |
| Voltage - Supply Span (Min) | 8 V |
| Voltage - Supply Span (Max) | 60 V |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| Supplier Device Package | DDPAK/TO-263-7 |
Submit your RFQ for OPA552FAKTWT and get a quote within 24 hours.
