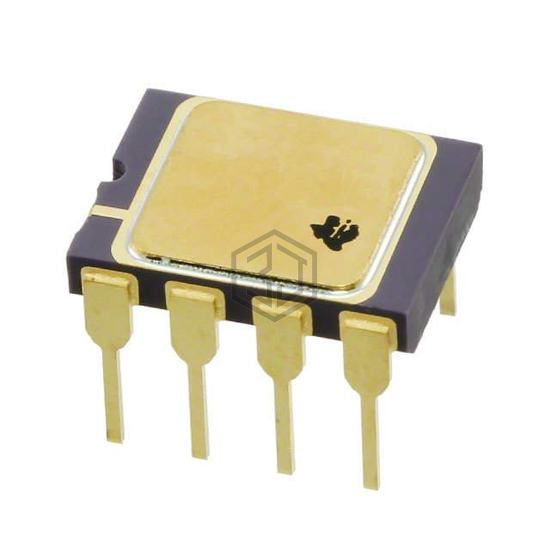

IC OPAMP ZERO-DRIFT 2 CIRC 8CDIP
OPA2333SJD is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Texas Instruments. IC OPAMP ZERO-DRIFT 2 CIRC 8CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 210°C, package / case 8-CDIP (0.300", 7.62mm) Window, current - supply 17µA (x2 Channels).
In Stock: 8,137
| Attribute | Value |
|---|---|
| Product Status | Active |
| Amplifier Type | CMOS, Zero-Drift |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.16V/µs |
| Gain Bandwidth Product | 350 kHz |
| -3db Bandwidth | - |
| Current - Input Bias | 70 pA |
| Voltage - Input Offset | 2 µV |
| Current - Supply | 17µA (x2 Channels) |
| Current - Output / Channel | 5 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -55°C ~ 210°C |
| Mounting Type | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) Window |
| Supplier Device Package | 8-CDIP SB |
Submit your RFQ for OPA2333SJD and get a quote within 24 hours.
