IC LED DRV RGLTR PWM 20DSBGA

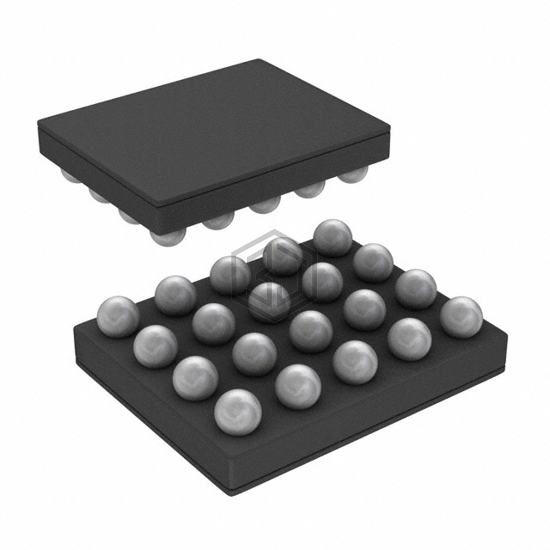

LP8556TME-E11/NOPB is a PMIC - LED Drivers manufactured by Texas Instruments. IC LED DRV RGLTR PWM 20DSBGA. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TA), voltage - output 7V ~ 21V, package / case 20-WFBGA, DSBGA.
In Stock: 480
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 3 |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 20V |
| Voltage - Output | 7V ~ 21V |
| Current - Output / Channel | 23mA |
| Frequency | 312kHz, 625kHz, 1250kHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFBGA, DSBGA |
| Supplier Device Package | 20-DSBGA (2.04x1.78) |
