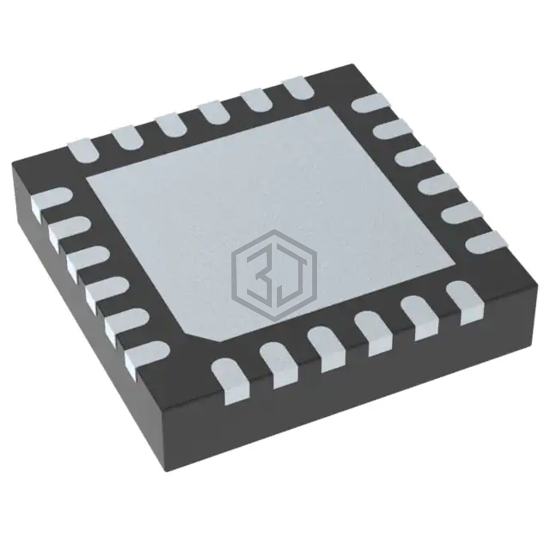

IC LED DRV RGLTR PWM 23MA 24WQFN
LP8556SQX-E08/NOPB is a PMIC - LED Drivers manufactured by Texas Instruments. IC LED DRV RGLTR PWM 23MA 24WQFN. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TA), voltage - output 16V ~ 34.5V, package / case 24-WFQFN Exposed Pad.
In Stock: 5,330
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 4 |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 20V |
| Voltage - Output | 16V ~ 34.5V |
| Current - Output / Channel | 23mA |
| Frequency | 312kHz, 625kHz, 1250kHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-WQFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LP8556SQ-E00/NOPB | Texas Instruments | IC LED DRV RGLTR PWM 25MA 24WQFN | 97% | View |
| LP8556SQE-E00/NOPB | Texas Instruments | IC LED DRV RGLTR PWM 25MA 24WQFN | 97% | View |
| LP8556TME-E09/NOPB | Texas Instruments | IC LED DRV RGLTR PWM 20DSBGA | 96% | View |
| LP8556SQE-E09/NOPB | Texas Instruments | IC LED DRV RGLTR PWM 25MA 24WQFN | 96% | View |
| LP8556TMX-E02/NOPB | Texas Instruments | IC LED DRV RGLTR PWM 20DSBGA | 96% | View |
| LP8556TME-E02/NOPB | Texas Instruments | IC LED DRV RGLTR PWM 20DSBGA | 96% | View |
Submit your RFQ for LP8556SQX-E08/NOPB and get a quote within 24 hours.
