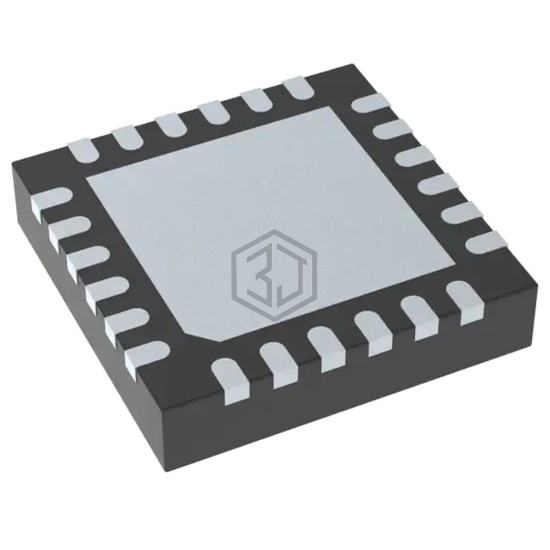

IC LED DRV RGLTR PWM 60MA 24WQFN
LP8543SQ is a PMIC - LED Drivers manufactured by Texas Instruments. IC LED DRV RGLTR PWM 60MA 24WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - output 40V, package / case 24-WFQFN Exposed Pad.
In Stock: 9,481
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 7 |
| Voltage - Supply (Min) | 5.5V |
| Voltage - Supply (Max) | 22V |
| Voltage - Output | 40V |
| Current - Output / Channel | 60mA |
| Frequency | 625kHz ~ 1.25MHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-WQFN (4x4) |
LP8543SQ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LP8543SQ/NOPB | Texas Instruments | IC LED DRV RGLTR PWM 60MA 24WQFN | 100% | View |
| MP3309AGQ-P | Monolithic Power Systems Inc. | IC LED DRIVER RGLTR PWM 10QFN | 63% | View |
| MP3309AGQ-Z | Monolithic Power Systems Inc. | IC LED DRIVER RGLTR PWM 10QFN | 63% | View |
| MP24892DJ-LF-P | Monolithic Power Systems Inc. | IC LED DRV RGLTR PWM 1A TSOT23-5 | 56% | View |
| MPQ2489DQ-LF-P | Monolithic Power Systems Inc. | IC LED DRVR RGLTR PWM 550MA 6QFN | 54% | View |
| MPQ2489DQ-AEC1-LF-Z | Monolithic Power Systems Inc. | IC LED DRVR RGLTR PWM 550MA 6QFN | 54% | View |
Submit your RFQ for LP8543SQ and get a quote within 24 hours.
