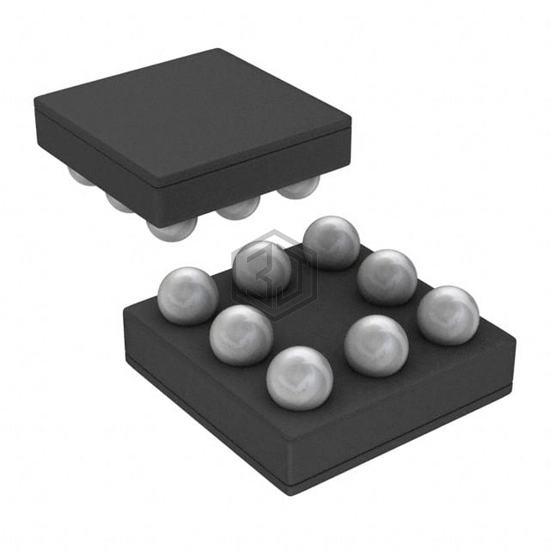

IC REG LINEAR 2.5V 150MA 8DSBGA
LP3986TLX-2525/NOPB is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR 2.5V 150MA 8DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-WFBGA, DSBGA, current - supply (max) 320 µA.
In Stock: 1,566
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 130 µA |
| Current - Supply (Max) | 320 µA |
| PSRR | 60dB ~ 50dB (1kHz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFBGA, DSBGA |
| Supplier Device Package | 8-DSBGA (1.56x1.56) |
LP3986TLX-2525/NOPB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADP150AUJZ-2.5-R7 | Analog Devices Inc. | IC REG LINEAR 2.5V 150MA TSOT5 | 80% | View |
| ADP150AUJZ-2.8-R7 | Analog Devices Inc. | IC REG LINEAR 2.8V 150MA TSOT5 | 77% | View |
| ADP150WACBZ-3.3-R7 | Analog Devices Inc. | 150MA LDO 3.3 VOUT | 72% | View |
| ADP7142ACPZN2.5-R7 | Analog Devices Inc. | IC REG LINEAR 2.5V 200MA 6LFCSP | 68% | View |
| ADP7142ARDZ-3.3-R7 | Analog Devices Inc. | IC REG LINEAR 3.3V 200MA 8SOIC | 54% | View |
| ADP7142WAUJZ-3.3-R7 | Analog Devices Inc. | 40V 200MA LDO 3.3V | 54% | View |
Submit your RFQ for LP3986TLX-2525/NOPB and get a quote within 24 hours.
