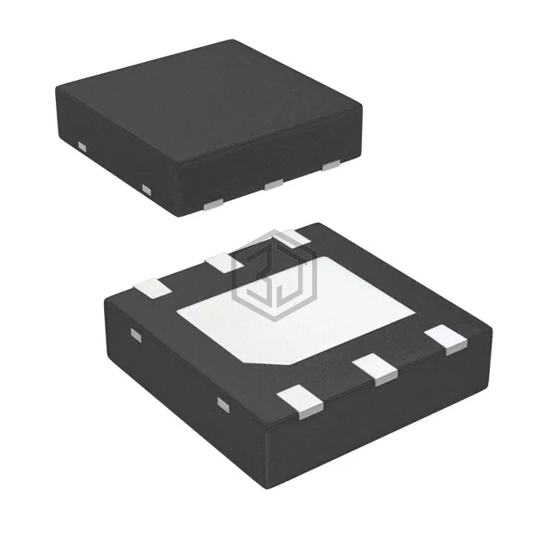

IC REG LINEAR 5V 500MA 6WSON
LP38691SDX-5.0 is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR 5V 500MA 6WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 6-WDFN Exposed Pad, current - supply (max) 100 µA.
In Stock: 9,117
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.45V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 55 µA |
| Current - Supply (Max) | 100 µA |
| PSRR | 55dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (3x3) |
LP38691SDX-5.0 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LP38691QSDX-5.0/NOPB | National Semiconductor | IC REG LINEAR 5V 500MA 6WSON | 100% | View |
| LP38693QSD-5.0/NOPB | Texas Instruments | IC REG LINEAR 5V 500MA 6WSON | 100% | View |
| LP38693SDX-3.3/NOPB | Texas Instruments | IC REG LINEAR 3.3V 500MA 6WSON | 87% | View |
| LP38692MP-5.0/NOPB | Texas Instruments | IC REG LINEAR 5V 1A SOT223-5 | 87% | View |
| LDK220PU50R | STMicroelectronics | IC REG LINEAR 5V 200MA 6DFN | 75% | View |
| LDK220PU33R | STMicroelectronics | IC REG LINEAR 3.3V 200MA 6DFN | 63% | View |
Submit your RFQ for LP38691SDX-5.0 and get a quote within 24 hours.
