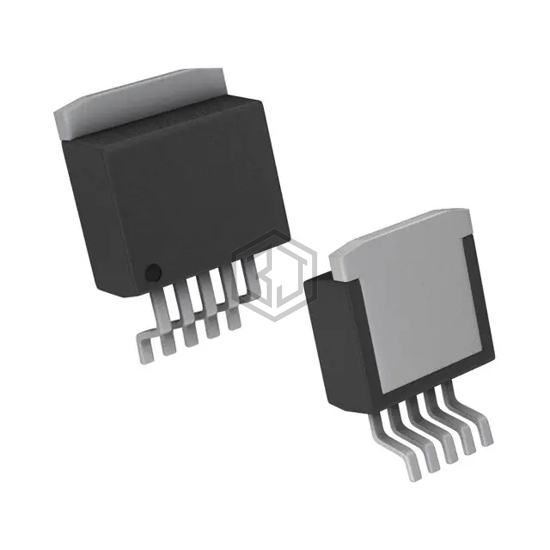

IC REG LIN POS ADJ 3A DDPAK
LP3856ES-ADJ is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LIN POS ADJ 3A DDPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - supply (max) 10 mA.
In Stock: 7,936
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 7V |
| Voltage - Output (Min/Fixed) | 1.23V |
| Voltage - Output (Max) | 6.5V |
| Voltage Dropout (Max) | 0.6V @ 3A |
| Current - Output | 3A |
| Current - Quiescent (Iq) | 4 mA |
| Current - Supply (Max) | 10 mA |
| PSRR | 73dB ~ 57dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | DDPAK/TO-263-5 |
LP3856ES-ADJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LP3855EMP-ADJ/NOPB | Texas Instruments | IC REG LIN POS ADJ 1.5A SOT223-5 | 87% | View |
| LP3855EMPX-ADJ/NOPB | Texas Instruments | IC REG LIN POS ADJ 1.5A SOT223-5 | 87% | View |
| LP3855ES-ADJ/NOPB | Texas Instruments | IC REG LIN POS ADJ 1.5A DDPAK | 87% | View |
| ADM7155ARDZ-01-R7 | Analog Devices Inc. | IC REG LIN POS ADJ 600MA 8SOIC | 67% | View |
| ADM7155ACPZ-02-R7 | Analog Devices Inc. | IC REG LIN POS ADJ 600MA 8LFCSP | 67% | View |
| ADM7155ARDZ-04-R7 | Analog Devices Inc. | IC REG LIN POS ADJ 600MA 8SOIC | 67% | View |
Submit your RFQ for LP3856ES-ADJ and get a quote within 24 hours.
