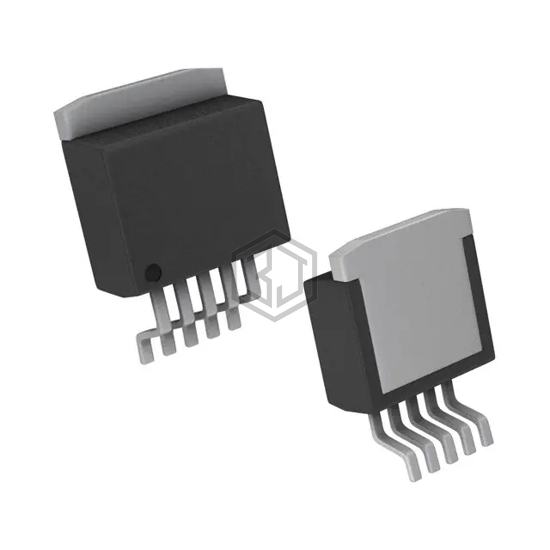

IC REG LIN 5V 1.5A DDPAK/TO263-5
LP3855ES-5.0 is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LIN 5V 1.5A DDPAK/TO263-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - supply (max) 10 mA.
In Stock: 1,672
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 7V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.38V @ 1.5A |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 3 mA |
| Current - Supply (Max) | 10 mA |
| PSRR | 73dB ~ 57dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | DDPAK/TO-263-5 |
LP3855ES-5.0 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LP3855ESX-3.3/NOPB | Texas Instruments | IC REG LINEAR 3.3V 1.5A DDPAK | 88% | View |
| LP3855ES-2.5/NOPB | Texas Instruments | IC REG LIN POS ADJ 1.5A DDPAK | 80% | View |
| LP3852ESX-1.8/NOPB | Texas Instruments | IC REG LINEAR 1.8V 1.5A DDPAK | 80% | View |
| LP3855ES-1.8/NOPB | Texas Instruments | IC REG LINEAR 1.8V 1.5A DDPAK | 80% | View |
| ADM7154ACPZ-3.0-R7 | Analog Devices Inc. | IC REG LINEAR 3V 600MA 8LFCSP | 56% | View |
| MAX5091AATA+T | Analog Devices Inc./Maxim Integrated | IC REG LINEAR 5V 100MA 8TDFN | 53% | View |
Submit your RFQ for LP3855ES-5.0 and get a quote within 24 hours.
