DC DC CONVERTER 0.8-5V

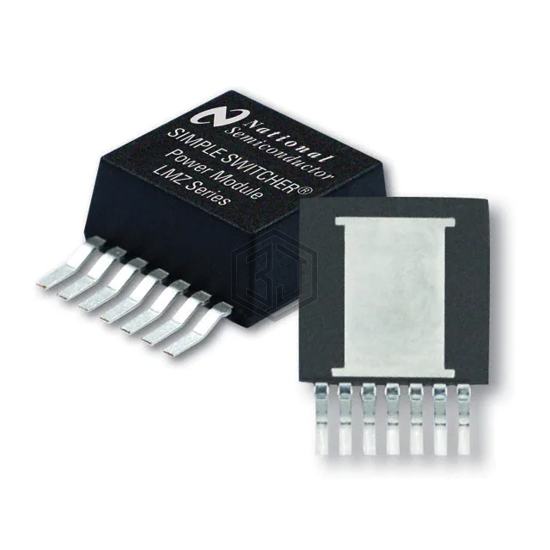

LMZ10503EXTTZ/NOPB is a DC DC Converters manufactured by Texas Instruments. DC DC CONVERTER 0.8-5V. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case TO-PMOD-7, Power Module, current - output (max) 3A.
In Stock: 704
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.95V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 0.8 ~ 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A |
| Power (Watts) | - |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | UVLO |
| Operating Temperature | -55°C ~ 125°C |
| Efficiency | 96% |
| Mounting Type | Surface Mount |
| Package / Case | TO-PMOD-7, Power Module |
| Size / Dimension | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) |
| Supplier Device Package | TO-PMOD-7 |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for LMZ10503EXTTZ/NOPB and get a quote within 24 hours.
