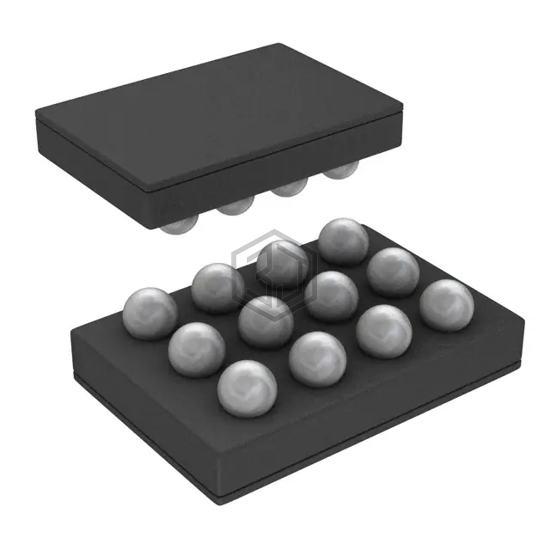

IC SWITCH DUAL SPDT 12USMD
LMS4684ITL/NOPB is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH DUAL SPDT 12USMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-WFBGA, number of circuits 2.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 800mOhm |
| Channel-to-Channel Matching (ΔRon) | 1.11mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 60ns, 40ns |
| -3db Bandwidth | - |
| Charge Injection | 200pC |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -72dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFBGA |
| Supplier Device Package | 12-uSMD (1.59x2.33) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4564EUA+ | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT 8UMAX | 89% | View |
| MAX4564EUA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT 8UMAX | 89% | View |
| DG441LEDY-T1-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-SOIC | 81% | View |
| DG441LEDQ-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-TSSOP | 81% | View |
| MAX4704EGC+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 4X1 12QFN | 64% | View |
| 74HCT4052PW,118 | Nexperia USA Inc. | IC MUX/DEMUX DUAL 4CHAN 16TSSOP | 61% | View |
Submit your RFQ for LMS4684ITL/NOPB and get a quote within 24 hours.
