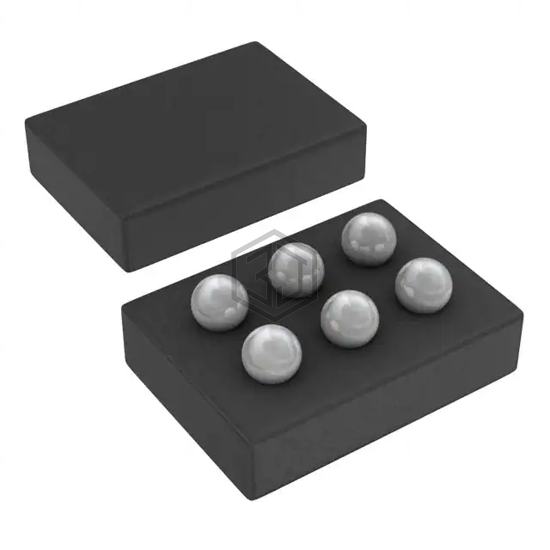

IC GATE DRVR LOW-SIDE 6DSBGA
LMG1020YFFT is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR LOW-SIDE 6DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 6-UFBGA, DSBGA.
In Stock: 1,886
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.75V ~ 5.25V |
| Logic Voltage - VIL, VIH | 1.8V, 1.7V |
| Current - Peak Output (Source, Sink) | 7A, 5A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 375ps, 350ps |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFBGA, DSBGA |
| Supplier Device Package | 6-DSBGA |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LMG1020YFFR | Texas Instruments | IC GATE DRVR LOW-SIDE 6DSBGA | 100% | View |
| LTC4441MPMSE#PBF | Analog Devices Inc. | IC GATE DRVR LOW-SIDE 10MSOP | 77% | View |
| MCP1406-E/MF | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 67% | View |
| MIC4420YM | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 67% | View |
| TC4429VMF713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 67% | View |
| MIC4129YME-TR | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 67% | View |
Submit your RFQ for LMG1020YFFT and get a quote within 24 hours.
