IC GATE DRVR HIGH-SIDE 20DIP

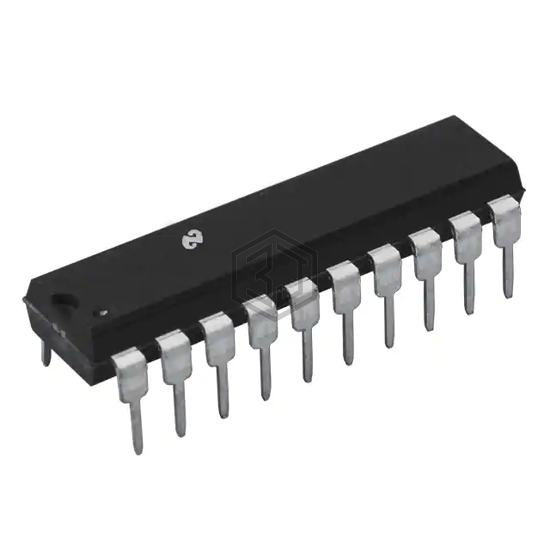

LMD18400N/NOPB is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HIGH-SIDE 20DIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 150°C (TJ), voltage - supply 7V ~ 28V, package / case 20-DIP (0.300", 7.62mm).
In Stock: 7,227
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | High-Side |
| Channel Type | Independent |
| Number of Drivers | 4 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 7V ~ 28V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | - |
| Operating Temperature | -25°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
LMD18400N/NOPB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IR4426PBF | Infineon Technologies | IC GATE DRVR LOW-SIDE 8DIP | 83% | View |
| MCP14E11-E/P | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 82% | View |
| TC4423EPA | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 82% | View |
| TC4424EPA | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 82% | View |
| TC4424VPA | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 82% | View |
| FAN7392N | onsemi | IC GATE DRVR HALF-BRIDGE 14DIP | 59% | View |
Submit your RFQ for LMD18400N/NOPB and get a quote within 24 hours.
