3-A, 85-V, 2.2-MHZ WIDE VIN BOOS

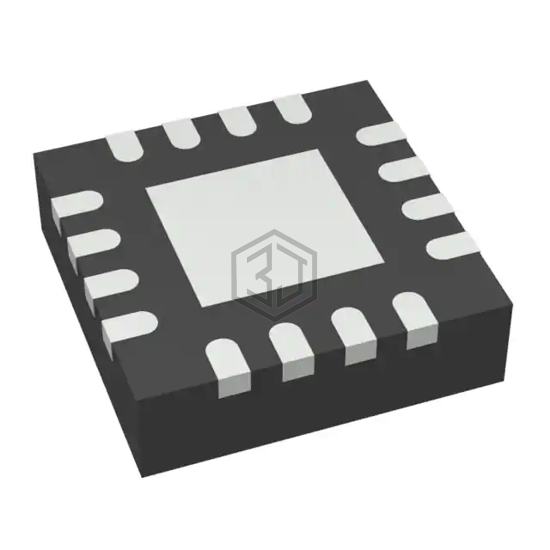

LM5158RTER is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Texas Instruments. 3-A, 85-V, 2.2-MHZ WIDE VIN BOOS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 16-WFQFN Exposed Pad, current - output 3.26A (Switch).
In Stock: 2,444
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, SEPIC |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.5V |
| Voltage - Input (Max) | 60V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | 83V |
| Current - Output | 3.26A (Switch) |
| Frequency - Switching | 100kHz ~ 2.2MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5158QRTERQ1 | Texas Instruments | 3-A, 85-V, 2.2-MHZ WIDE VIN BOOS | 100% | View |
| LM51581QRTERQ1 | Texas Instruments | 1.5-A, 85-V, 2.2-MHZ WIDE VIN BO | 93% | View |
| LM5157QRTERQ1 | Texas Instruments | IC POWER | 74% | View |
| LM51571RTER | Texas Instruments | 6A/4A, 50-V, 2.2-MHZ WIDE VIN BO | 64% | View |
| LM2586SX-ADJ/NOPB | Texas Instruments | IC REG MULT CONFG ADJ 3A TO263-7 | 63% | View |
| LM2586S-ADJ/NOPB | Texas Instruments | IC REG MULT CONFG ADJ 3A TO263-7 | 63% | View |
Submit your RFQ for LM5158RTER and get a quote within 24 hours.
