2.2MHZ WIDE INPUT NONSYNCHRONOUS

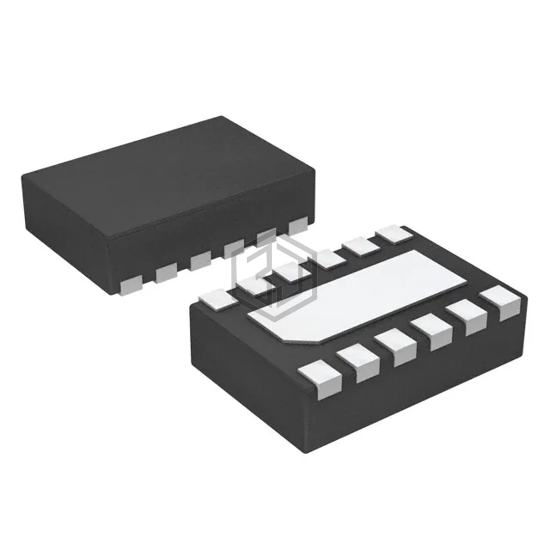

LM51561DSSR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. 2.2MHZ WIDE INPUT NONSYNCHRONOUS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 2.97V ~ 60V, package / case 12-WFDFN Exposed Pad.
In Stock: 8,827
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.97V ~ 60V |
| Frequency - Switching | 100kHz ~ 2.2MHz |
| Duty Cycle (Max) | 93% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-WSON (3x2) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM3488MM/NOPB | Texas Instruments | IC REG CTRLR MULT TOP 8VSSOP | 100% | View |
| LM51551QUDSSTQ1 | Texas Instruments | 2.2-MHZ WIDE VIN 1.5-A MOSFET D | 100% | View |
| LT8357HMSE#WPBF | Analog Devices Inc. | LOW-IQ, 2MHZ 60V ISOLATED SEPIC | 100% | View |
| LM5156QDSSTQ1 | Texas Instruments | PROTOTYPE | 98% | View |
| LM51561QDSSTQ1 | Texas Instruments | PROTOTYPE | 98% | View |
| LTC3862IUH-1#PBF | Analog Devices Inc. | IC REG CTRLR BOOST/SEPIC 24QFN | 61% | View |
Submit your RFQ for LM51561DSSR and get a quote within 24 hours.
