POWER MANAGEMENT

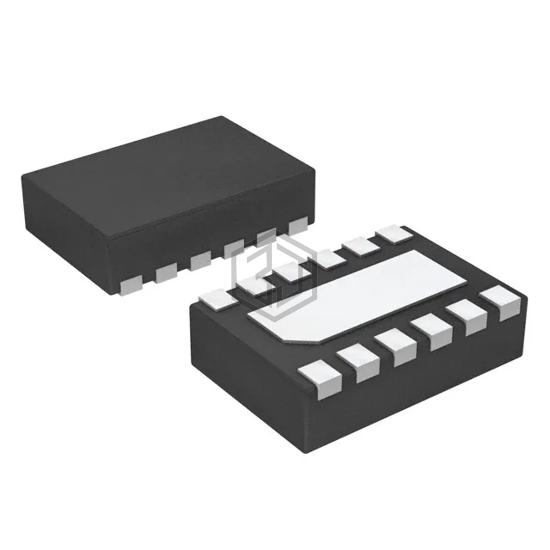

LM5155DSSR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. POWER MANAGEMENT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 2.97V ~ 45V, package / case 12-WFDFN Exposed Pad.
In Stock: 1,351
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.97V ~ 45V |
| Frequency - Switching | 100kHz ~ 2.2MHz |
| Duty Cycle (Max) | 93% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-WSON (3x2) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM3488MM/NOPB | Texas Instruments | IC REG CTRLR MULT TOP 8VSSOP | 100% | View |
| LM5155QUDSSRQ1 | Texas Instruments | 2.2-MHZ WIDE VIN 1.5-A MOSFET D | 100% | View |
| LM5155QUDSSTQ1 | Texas Instruments | 2.2-MHZ WIDE VIN 1.5-A MOSFET D | 100% | View |
| LT8357HMSE#WTRPBF | Analog Devices Inc. | LOW-IQ, 2MHZ 60V ISOLATED SEPIC | 100% | View |
| LT8357HMSE#WPBF | Analog Devices Inc. | LOW-IQ, 2MHZ 60V ISOLATED SEPIC | 100% | View |
| LM5156QDSSTQ1 | Texas Instruments | PROTOTYPE | 98% | View |
Submit your RFQ for LM5155DSSR and get a quote within 24 hours.
