IC GATE DRVR LOW-SIDE 6WSON

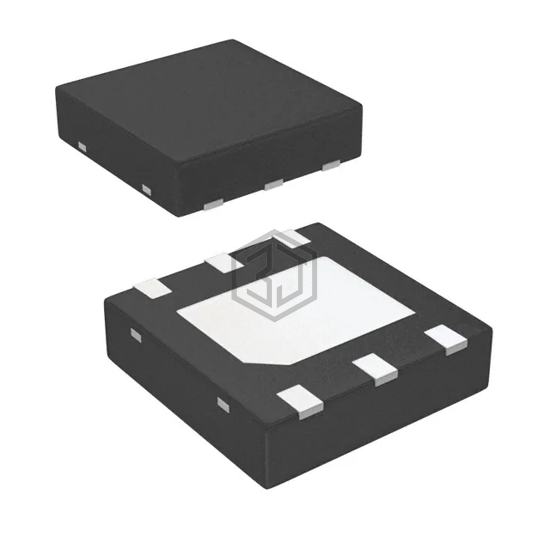

LM5134ASDX/NOPB is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR LOW-SIDE 6WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4V ~ 12.6V, package / case 6-WDFN Exposed Pad.
In Stock: 1,337
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4V ~ 12.6V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 4.5A, 7.6A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 3ns, 2ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5134BMF/NOPB | Texas Instruments | IC GATE DRVR LOW-SIDE SOT23-6 | 100% | View |
| LM5134BSD/NOPB | Texas Instruments | IC GATE DRVR LOW-SIDE 6WSON | 100% | View |
| LM5134AMF/NOPB | Texas Instruments | IC GATE DRVR LOW-SIDE SOT23-6 | 100% | View |
| LM5134AMFX/NOPB | Texas Instruments | IC GATE DRVR LOW-SIDE SOT23-6 | 100% | View |
| MCP14A0452T-E/RW | Microchip Technology | IC GATE DRVR LOW-SIDE 8WDFN | 80% | View |
| MCP14A0452T-E/SN | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 80% | View |
Submit your RFQ for LM5134ASDX/NOPB and get a quote within 24 hours.
