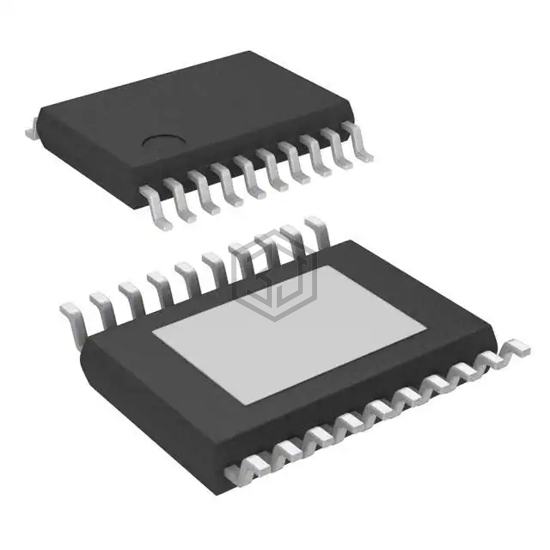

IC REG CTRLR BCK/BCK-BST 20TSSOP
LM5118MH/NOPB is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BCK/BCK-BST 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 3V ~ 75V, package / case 20-PowerTSSOP (0.173", 4.40mm Width).
In Stock: 9,350
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Buck-Boost |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 75V |
| Frequency - Switching | 200kHz, 515kHz |
| Duty Cycle (Max) | 80% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Ramp, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-HTSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5118Q1MH/NOPB | Texas Instruments | IC REG CTRLR BCK/BCK-BST 20TSSOP | 100% | View |
| LM5118Q1MHX/NOPB | Texas Instruments | IC REG CTRLR BCK/BCK-BST 20TSSOP | 100% | View |
| LM5118MHX/NOPB | Texas Instruments | IC REG CTRLR BCK/BCK-BST 20TSSOP | 100% | View |
| TL494BDR2G | onsemi | IC REG CTRLR BCK/PSH-PULL 16SOIC | 83% | View |
| LTC3859ALHFE#TRPBF | Analog Devices Inc. | IC REG CTRLR MULT TOP 38TSSOP | 52% | View |
| LTC3859ALHFE#PBF | Analog Devices Inc. | IC REG CTRLR MULT TOP 38TSSOP | 52% | View |
Submit your RFQ for LM5118MH/NOPB and get a quote within 24 hours.
