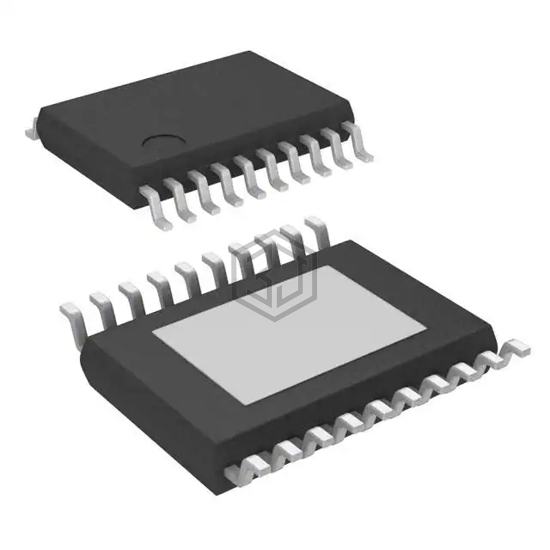

IC REG CTRLR BUCK 20TSSOP
LM5116MH is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 6V ~ 100V, package / case 20-PowerTSSOP (0.173", 4.40mm Width).
In Stock: 4,243
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 6V ~ 100V |
| Frequency - Switching | 200kHz, 535kHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Ramp, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-HTSSOP |
LM5116MH is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT3741IUF-1#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 20QFN | 100% | View |
| LT3741EFE#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 20TSSOP | 100% | View |
| LM5116MHX | National Semiconductor | SWITCHING CONTROLLER, CURRENT-MO | 100% | View |
| MIC2176-2YMM-TR | Microchip Technology | IC REG CTRLR BUCK 10MSOP | 97% | View |
| LM3495MTC/NOPB | Texas Instruments | IC REG CTRLR BUCK 16TSSOP | 92% | View |
| XRP6124ESTR0.5-F | MaxLinear, Inc. | IC REG CTRLR BUCK SOT23-5 | 92% | View |
Submit your RFQ for LM5116MH and get a quote within 24 hours.
