BUFFER/INVERTER BASED MOSFET DRI

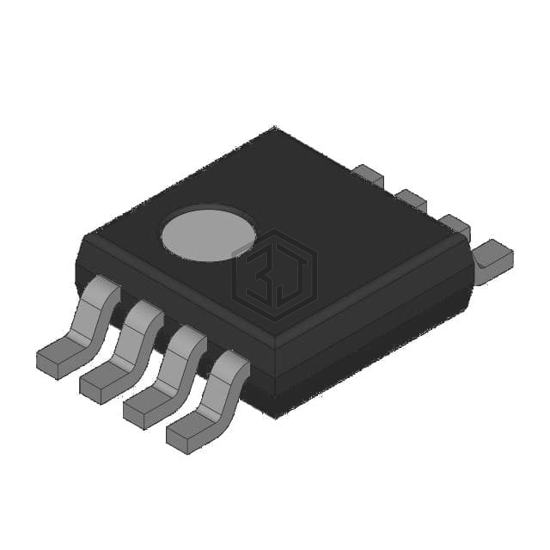

LM5111-3MY/NOPB is a PMIC - Gate Drivers manufactured by Texas Instruments. BUFFER/INVERTER BASED MOSFET DRI. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 3.5V ~ 14V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad.
In Stock: 7,684
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 3.5V ~ 14V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2 V |
| Current - Peak Output (Source, Sink) | 3A, 5A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 14ns, 12ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-MSOP-PowerPad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5110-2SD/NOPB | Texas Instruments | IC GATE DRVR LOW-SIDE 10WSON | 100% | View |
| MCP14A0305T-E/MNY | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8TDFN | 95% | View |
| FAN3229TMX | onsemi | IC GATE DRVR LOW-SIDE 8SOIC | 95% | View |
| MCP14A0305-E/MS | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8MSOP | 95% | View |
| MIC4123YME-TR | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 94% | View |
| UCC27201AQDMKRQ1 | Texas Instruments | IC GATE DRVR HALF-BRIDGE 10VSON | 83% | View |
Submit your RFQ for LM5111-3MY/NOPB and get a quote within 24 hours.
