IC GATE DRVR HALF-BRIDGE 8WSON

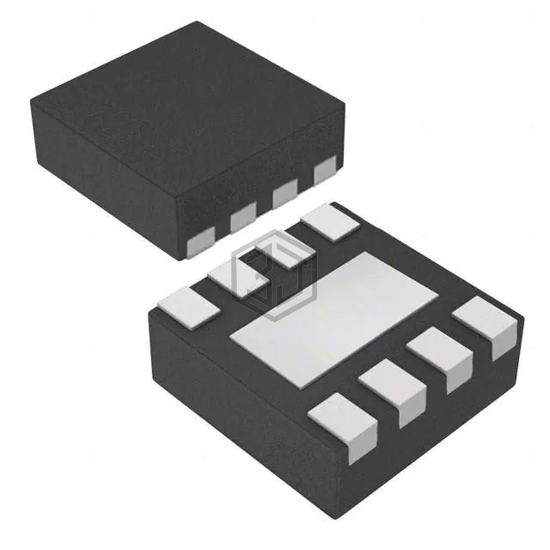

LM5109BSD is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 8WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 8V ~ 14V, package / case 8-WDFN Exposed Pad.
In Stock: 2,038
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 14V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 1A, 1A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 108 V |
| Rise / Fall Time (Typ) | 15ns, 15ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (4x4) |
LM5109BSD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5109ASD/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8WSON | 100% | View |
| MIC4605-1YM | Microchip Technology | IC GATE DRVR HALF-BRIDGE 8SOIC | 93% | View |
| MCZ33883EGR2 | Freescale Semiconductor | FULL BRIDGE BASED MOSFET DRIVER, | 83% | View |
| IR2011STRPBF | Infineon Technologies | IC GATE DRVR HI/LOW SIDE 8SOIC | 81% | View |
| ISL83202IBZ | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 16SOIC | 80% | View |
| HIP2104FRAANZ-T7A | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 12DFN | 74% | View |
