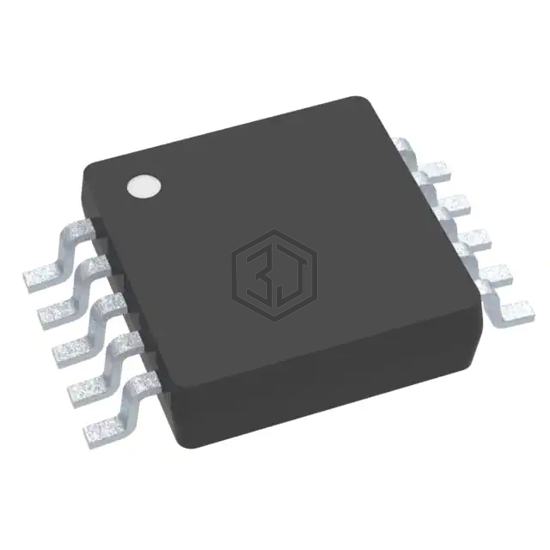

IC GATE DRVR HALF-BRIDGE 10VSSOP
LM5102MM is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 10VSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9V ~ 14V, package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width).
In Stock: 4,323
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 9V ~ 14V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 1.6A, 1.6A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 118 V |
| Rise / Fall Time (Typ) | 600ns, 600ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
LM5102MM is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5102SD/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 10WSON | 100% | View |
| LM5102MM/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 10VSSOP | 100% | View |
| LM5102SD | National Semiconductor | HALF BRIDGE BASED PERIPHERAL DRI | 100% | View |
| MIC4127YMME-TR | Microchip Technology | IC GATE DRVR LOW-SIDE 8MSOP | 71% | View |
| MIC4128YML-TR | Microchip Technology | IC GATE DRVR LOW-SIDE 8MLF | 71% | View |
| LM5108DRCR | Texas Instruments | IC GATE DRVR PWR MGMT | 67% | View |
Submit your RFQ for LM5102MM and get a quote within 24 hours.
